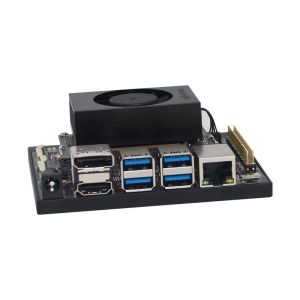

Jetson Xavier ARM SBC Embedded System Nvidia NX Carrier Board
NVIDIA GPU development kit Jetson Xavier NX official kit and Jetson Xavier NX domestic self-developed kit are basically the same in Xavier NX module performance, onboard resources, size, interface layout, the difference is only in the domestic version of 16G eMMC storage, no TF card can be convenient to start the embedded sbc. also for industrial like adge AI.
NVIDIA Jetson Developer Kit NX16g-DEV Technical Specifications
CPU | 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3 |
GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores |
Camera | 2x MIPI CSI-2 DPHY lanes |
Memory | 16 GB 128-bit LPDDR4x 59.7GB/s |
Storage | 16 GB eMMC 5.1 |
Display | HDMI and DP |
I/O | 40-PIN GPIO |
USB | 4*USB 3.0 |
| 1*USB 2.0(Otg) |
Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264/H.265) |
Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) |
Other | FAN Header (GPIO,I2C,I2S,SPI,UART) |
Size | 91 mm x 104 mm x 35 mm |
The Jetson Xavier NX is available in 8GB and 16GB versions. Please Contact us.
Diffrent Between Jetson Xavier NX domestic DEV-Kit and NVIDIA Jetson Xavier NX official DEV-Kit
| Jetson Xavier NX domestic DEV-Kit | NVIDIA Jetson Xavier NX official DEV-Kit |
Memory | 16/8 GB 128-bit LPDDR4x 59.7GB/s | |
Storage | 16GB eMMC Expandable M.2 hard disk | No storage medium Expandable M.2 hard disk |
GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores | |
CPU | 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3 | |
Display | HDMI & DP | |
Camera | 2x MIPI CSI-2 DPHY lanes | |
USB | 4x USB 3.0, 1x USB 2.0 OTG | |
Size | 91 mm x 104 mm x 35 mm | |
1/Support 2 CSI cameras
